Basic Info.
Model NO.
CBB65 AC Capacitor
Type
Metallized Polypropylene Film Capacitor
Application
General Purpose, AC / Motor, Power, Lighting, Air Conditioner, Water Pump, Compressors, Refrigerator, etc
Packaging Type
Capacitance
2UF~120UF
Structure
Manufacturing Material
Metallized Polypropylene Film
Electrolyte
Film Capacitor
Usage
Low Frequency Coupling, High Frequency Coupling, Filter, Low Frequency Bypass, High Frequency Bypass, Air Conditioner, Compressors, Refrigerator, etc
Tuning
Metallized Polypropylene Film Capacitor
Filter
Film Capacitor
Model No.
CBB65 Capacitor
Reference Standards
GB/T 3667.1(IEC60252-1)
Operating Temperature
40/70/21 or 40/85/21
Rated Voltage
220VAC 370VAC 440VAC 450VAC
Capacitance Tolerance
5%;10%;15%
Class of Operation
Class B(10000h), Class C(3000h)
Class of Safety Protection
S2
Remain Voltage When Put Into Operation
No More Than 10% of Rated Voltage
Maximum Allowed Voltage
No More Than 1.1 Times Rated Voltage
Maximum Allowed Current
No More Than 1.3 Times Rated Current
Shape
Cylinder or Ellipse
Capacitor Case
Aluminum Case
MOQ
1 PCS
Size
Negotiable
Trademark
Saifu/ TOFO
Transport Package
Capacitors Standard Export Packing Carton
Specification
CBB65 Capacitor
Origin
Tongling City, Anhui Province, China(Mainland)
HS Code
8532259000

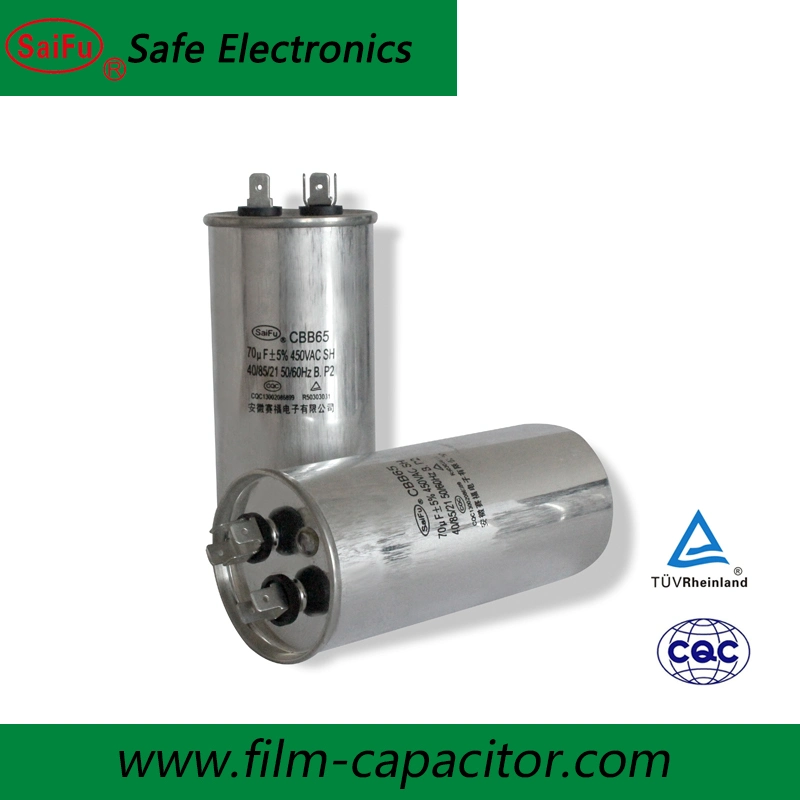

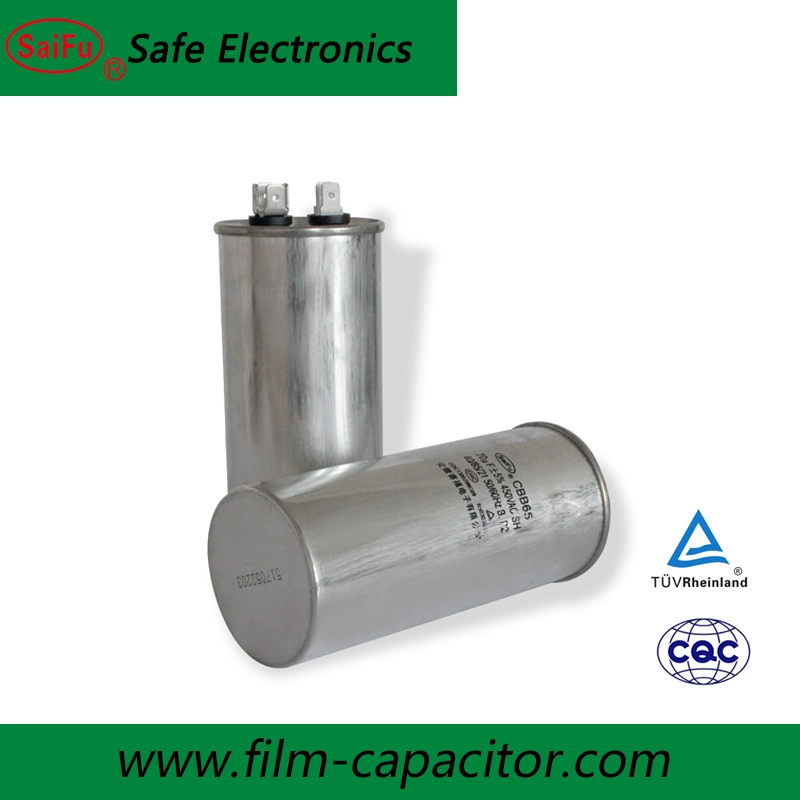

Product Description
Being a supplier in the film capacitor industry,we have become the reliable manufacturer and supplier of capacitors.
Reliable and economical, our offered capacitor is available in various specifications to cater specific demand of our
clients.
Our company has obtained ISO9001 quality management system certificate,ISO14001 environment management
system certificate,OHSAS18001 occupation health and safety management system certificate.Our products have
obtained CQC,TUV,UL,CE and other relevant certifications,in compliance with ROHS and REACH directive
requirements.
1. Applications
(1) CBB65 capacitor applied to Air Conditioner,Refrigerator,Compressors,AC Motor,General Purpose,Lighting,
etc;
(2) CBB65 Capacitor broadly applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency
for family air conditioners and high power illuminators for the sake of power factor compensation.
2.Products Features
(1)Using high grade metallized polypropylene film to ensure strong overload capacity, low loss and high insulation
resistance of the capacitors;
(2)Long rated service life, excellent self-healing performance;
(3)The shell is sealed with aluminum shell, which can achieve the best explosion-proof effect.
3. Specifications
| Technical Specifications | |
| Model No. | CBB65 Capacitor |
| Type | Air Conditioner Compressor Capacitor |
| Structure | Single Capacitor |
| Manufacturing Material | Metallized Polypropylene Film |
| Electrolyte | Polypropylene Film |
| Reference Standards | GB/T 3667.1(IEC60252-1) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety production | S2 |
| Voltage range | 220VAC 370VAC 440VAC 450VAC |
| Capacitance range | 2uF~100uF |
| Capacitance tolerance | ±5% ±10% ±15% |
| Dissipation factor | 20*10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ.uF(100Hz,20ºC,1min) |
| Altitude | ≤2000m |
| Remain voltage when put into operation | No more than 10% of rated voltage |
| Maximum allowed voltage | No more than 1.1 times rated voltage |
| Maximum allowed current | No more than 1.3 times rated current |
| Package Type | Export Standard Carton for CBB65 Capacitor |
| Production Capacity | 3500,000PCS/Month |
| MOQ | 1PCS |
| Size | Negotiable |
4. Dimensions(mm)
| CBB65 AC Motor Run Polypropylene Film Capacitor | ||||
| No | Specifications | Terminal | D | H |
| 1 | CBB65-450VAC 2μF ~9μF | 2×4 or 2×2 pin | 40 | 60 |
| 2 | CBB65-450VAC-10μF | 2×4 or 2×2 pin | 40 | 60 |
| 3 | CBB65-450VAC-12.5μF | 2×4 or 2×2 pin | 40 | 70 |
| 4 | CBB65-450VAC-15μF | 2×4 or 2×2 pin | 45 | 70 |
| 5 | CBB65-450VAC-20μF | 2×4 or 2×2 pin | 45 | 75 |
| 6 | CBB65-450VAC-25μF | 2×4 or 2×2 pin | 50 | 85 |
| 7 | CBB65-450VAC-30μF | 2×4 or 2×2 pin | 50 | 100 |
| 8 | CBB65-450VAC-35μF | 2×4 or 2×2 pin | 50 | 100 |
| 9 | CBB65-450VAC-40μF | 2×4 or 2×2 pin | 50 | 100 |
| 10 | CBB65-450VAC-45μF | 2×4 or 2×2 pin | 50 | 100 |
| 11 | CBB65-450VAC-50μF | 2×4 or 2×2 pin | 50 | 125 |
| 12 | CBB65-450VAC-55μF | 2×4 or 2×2 pin | 50 | 125 |
| 13 | CBB65-450VAC-60μF | 2×4 or 2×2 pin | 50 | 125 |
| 14 | CBB65-450VAC-65μF | 2×4 or 2×2 pin | 55 | 125 |
| 15 | CBB65-450VAC-70μF | 2×4 or 2×2 pin | 55 | 125 |
| 16 | CBB65-450VAC-80μF | 2×4 or 2×2 pin | 60 | 125 |
| 17 | CBB65-450VAC-90μF | 2×4 or 2×2 pin | 60 | 125 |
| 18 | CBB65-450VAC-100μF | 2×4 or 2×2 pin | 63.5 | 125 |
Note:Other specifications,size,terminal outside table and price are negotiable.
5. Production Process
The CBB65 AC Motor Capacitor adopts zinc-aluminum edge thickened metallized polypropylene film as the electrode
and the dielectric. It is tightly rolled by high speed winding machine,sealed by aluminum shell,and impregnated with
refined castor oil at high temperature to keep it in a vacuum state.Therefore, the capacitor can be more stable, longer life.
What's more,it adopted the second generation of mechanical explosion-proof design, so the reliability is very higher.
6. Production Equipments
7. Patents And R&D
8.Qualification Certification
9.Honors Our Team Has Received
10. Our Team Activities
Customer Question And Answer
Why Choose us?
(1)Leading Technology
4 High-vacuum coating machines,16 high-speed slitting machines,7 winding machines
and other automatic equipments;Professional manufacturing film capacitors for decades;
Various patents.
(2)High Quality Products
Constantly updating high-precision equipments;Advanced equipments with
professional technicians;High grade materials; Quality management service center;
(3)Fast Response And Delivery
7×24 Hours online for any questions;3-7 days after payment according to quantities,
can adjust the flexible delivery time according to customer demand.
(4)Free Sample
We can provide a certain amount of free samples according to customer's requirement.
Welcome to contact and discuss your inquiry with us!
